Mixing system for dairy, juice, beverage production.
Product description:

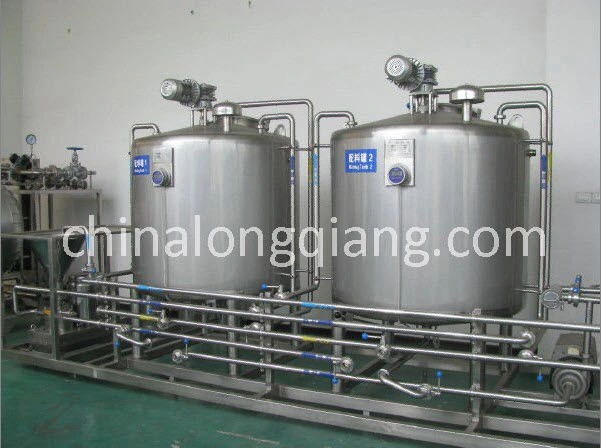

The special ice cream whole set sterilizing equipment is a kind of production line including powder dissolving, Mixing, preheating, homogenizing, sterilization, aging and CIP cleaning.
Main features:
Compact structure, small land area, high heat recovery, good effect of energy saving and consumption reduction, as well as simple operation.
Production capacity: 500-10000L/H
Sterilization temperature: 85-95° C
Temperature of material outlet: 6-10° C
Control mode: Semi-automatic control, Full-auto control(PLC control, touch screen display)
Product description:
The special ice cream whole set sterilizing equipment is a kind of production line including powder dissolving, Mixing, preheating, homogenizing, sterilization, aging and CIP cleaning.
Main features:
Compact structure, small land area, high heat recovery, good effect of energy saving and consumption reduction, as well as simple operation.
Production capacity: 500-10000L/H
Sterilization temperature: 85-95° C
Temperature of material outlet: 6-10° C
Control mode: Semi-automatic control, Full-auto control(PLC control, touch screen display)
| Model | Capacity | Steam comsuption | Steam pressure | Cooling water | Ice water | Power | Size | Weight | Pipe diameter | ||
| (t/h) | (t/h) | (kw) | (l× w× h) | (kg) | Product | Steam | Medium | ||||
| BR16- BS-BL-1J | 1 | 2.5 | 1 | 3 | 12 | 3.2× 1.4× 1.8 | 760 | 32 | DN25 | 32 | |
| BR26-BS-BL-2J | 2 | 100 | 2.5 | 2 | 6 | 12 | 3.4× 1.6× 2.0 | 930 | 38 | DN25 | 38 |
| BR26-BS-BL-3J | 3 | 150 | 2.5 | 3 | 9 | 15 | 3.8× 1.6× 2.2 | 980 | 38 | DN25 | 38 |
| BR26-BS-BL-4J | 4 | 200 | 2.5 | 4 | 12 | 15 | 4.0. × 1.6× 2.0 | 1030 | 51 | DN25 | 51 |
| BR26-BS-BL-5J | 5 | 250 | 2.5 | 5 | 15 | 18 | 4.0× 1.6× 2.0 | 1090 | 51 | DN25 | 51 |
| BR26-BS-BL-6J | 6 | 300 | 2.5 | 6 | 18 | 18 | 4.2× 1.6× 2.0 | 1650 | 63 | DN32 | 63 |
| BR26-BS-BL-8J | 8 | 400 | 2.5 | 8 | 20 | 20 | 4.5× 1.6× 2.0 | 1770 | 63 | DN40 | 63 |
| BR56-BS-BL-10J | 10 | 500 | 2.5 | 10 | 22 | 22 | 4.8× 1.6× 2.0 | 1890 | 76 | DN40 | 63 |
